Halo Domestic - Solar Water Heater

Name: Halo Domestic - Solar Water Heater
Brand: Venus Home Appliances

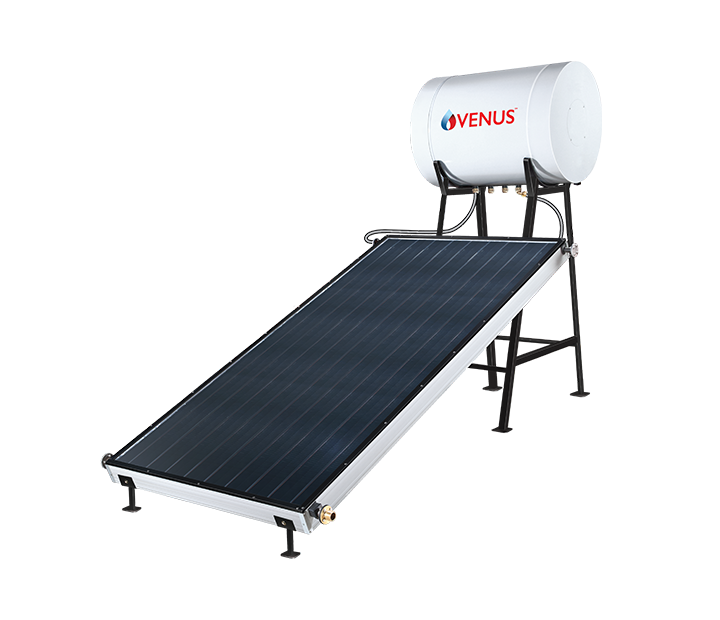

Venus Halo Domestic Solar Water Heater—Harness Solar Energy Every Day

Bring the benefits of solar water heating to your home with the Venus Halo Domestic Solar Water Heater. Designed around Flat Plate Collector (FPC) technology, the system captures solar radiation through an absorber plate and transfers the collected heat to water.

The heated water is stored in an insulated tank for subsequent household use. By making use of renewable solar energy, the Halo Domestic Solar Water Heater can help reduce the electricity consumed for conventional water heating.

Explore the available capacity and installation requirements to determine whether the Halo FPC system is right for your home.

7 Years on Inner Tank5 Years on Product

*Free Site Visit — To check availability in your area, contact us at: 08144666999

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

Save on Water Heating Costs

Solar water heaters use free energy from the sun, drastically reducing your electricity or fuel bills. Once installed, your hot water is almost cost-free, year after year.

Lower Bills. Higher Savings. Try our Calculator

Usage

Besides individual houses, the Halo Domestic solar water heater is also ideal for schools, hostels, hotels, dairies, breweries, canteens and industries like automotive, fertilizer, chemical, textiles, pharmaceuticals, etc.

KEY BENEFITS

Flat Plate Collector technology
Solar absorber for collecting and transferring heat
Insulated hot-water storage
A renewable-energy solution for domestic hot water
Capacity options subject to model availability

Unique Features

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Powder coated Outer body:

Long life corrosion proof Pre coated outer cladding.

Flat plate collector

Flat Plate Collector made of Copper with Aluminium fins coated in black for maximum absorption of solar radiation and effective heat transfer

Powder coated MS stand.

sturdy and rust resistant.

Backup electric

Backup electric heating element for cold rainy days (Optional).

PUF insulation

5cm Thick PUF insulation for minimum heat loss

5 Bar Pressure.

Pressure pump compatible with 5 bar pressure rating

Specifications

Description	HA100	HA200
Capacity	100 LPD	200 LPD
FP Collector	1 no	2 no
Safety Devices (Optional)	Thermostat	Thermostat
Pipe Connection	3/4”	3/4”
Electric Heating Element (Optional)	2 kW	2 kW
Rated Working Pressure	5 bar (5 kg/cm²)	5 bar (5 kg/cm²)
Daily Usage	4 Persons	8 Persons
Maximum No. of Outlets	2 nos	4 nos

* Refer "Terms & Conditions" in User Manual / Technical data sheet.
**Specifications subject to change without prior notice.

FOOT PRINT DRAWING

FAQ

Any Question? Can We Help You.

A flat plate collector uses a solar absorber plate to capture sunlight and convert it into heat. This heat is transferred to water, which can then be stored in an insulated tank.

An FPC system uses an absorber plate beneath a transparent cover, while a VTC system uses evacuated glass tubes with selective absorber coatings. Both collect solar energy, but their collector construction and thermal performance characteristics differ.

Yes. It can reduce the electricity required for water heating by using solar energy. Actual savings depend on sunlight, usage, local electricity tariffs and the system's capacity.

It may still collect some diffuse solar radiation, but heating performance generally decreases when sunlight is weak. Hot-water availability depends on weather, previous heat collection and consumption.

Select capacity based on the number of household members, bathing requirements, daily hot-water demand, local weather and available roof space. A Venus representative can help assess the installation.
