Venus Swimming Pool Heat Pump|Energy-Efficient Pool Heating System for Residential & Commercial Pools

Name: Swimming Pool Heat Pump
Brand: Venus Home Appliances

Comfortable Pool Temperatures. Energy-Efficient Heating.

Extend the enjoyment of your swimming pool with Venus Swimming Pool Heat Pumps. Designed to transfer heat from the surrounding air to pool water, these systems help maintain a more comfortable swimming temperature while using electricity efficiently.

Suitable for appropriately designed residential and commercial pool installations, Venus pool heat pumps offer an energy-conscious alternative to conventional electric heating. Whether you are planning a private pool, hotel pool, resort facility or recreational swimming pool, the right heat pump can help maintain your desired water temperature with efficient operation.

1 Years on Product

*Free Site Visit — To check availability in your area, contact us at: 08144666999

JC No. 26-27-0167 Web Banner_ HEAT PUMP COMMERCIAL_1920x600.jpg

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

JC No. 26-27-0167 Web Banner_ HEAT PUMP COMMERCIAL_1920x600 copy 4_1920x600 copy 4.jpg

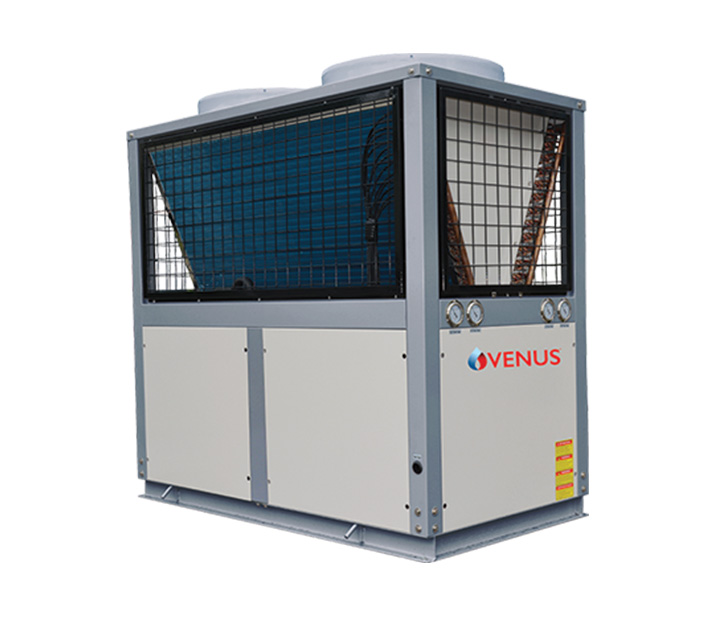

Swimming Pool Heat Pumps are high capacity heating systems that can raise the temperature of the swimming pool water from ambient to a set temperature (27 ~ 35°C) and maintain the temperature. These heat pumps find their application in swimming pools in clubs, resorts and bungalows.

Comfortable Swimming. Energy-Efficient Heating.

Enjoy a more comfortable swimming experience with Venus Swimming Pool Heat Pumps. Designed to transfer heat from the surrounding air to pool water, they help maintain your desired swimming temperature while reducing energy consumption.

Venus Swimming Pool Heat Pumps — Efficient Pool Water Heating

Maintaining a comfortable swimming pool temperature can require substantial energy, particularly during cooler weather or when the pool is used frequently. Venus Swimming Pool Heat Pumps offer an energy-efficient approach by extracting heat from the surrounding air and transferring it to the pool water.

Unlike conventional electric resistance heating, which generates heat directly from electricity, a heat pump moves available heat into the water. This can help reduce pool-heating energy consumption, depending on the climate, pool size, target temperature and operating schedule.

Designed for integration with a suitable pool circulation and filtration system, the heat pump warms the circulating water before it returns to the pool. Correct equipment sizing, water flow, pool covering and heat-loss management are important to achieve the desired temperature efficiently.

For private pools, hotels, resorts and recreational facilities, Venus pool heat pumps provide a practical option for improving swimming comfort while managing ongoing heating costs.

Applications

Eco-friendly Refrigerant:

Eco friendly technology as an Eco friendly refrigerant is used.

Water circulation technology:

Safe and reliable water circulation technology that ensures no mixing of refrigerant and water.

Low operating cost - more savings:

More savings as the operating costs are low.

Compressor - heart of the heat pump

Rugged and reliable Scroll compressor with high efficiency heat exchanger - reliable and durable.

Expansion valve:

The expansion valve is an important component in the Heat pump water heater operation.

Intelligent Electronic controller:

Intelligent automatic LCD controller to set temperature and time options.

Low operating cost - more savings:

More savings as the operating costs are low.

Face Gasket with Neck Protection:

Easy to install

Occupies very little space

Smart Investment. Real Savings.

Switching to a heat pump water heater can reduce running costs dramatically, helping you recover your investment through lower energy bills while enjoying consistent hot water all year. Save Up to 75% on Your Energy Bills.

Try Our Calculator

Heat Pump Savings & ROI Calculator

Enter your daily usage, electricity tariff, and heater size to see how many units you’ll consume, how much you’ll save every month, and your estimated return on investment.

Try Our Calculator

Unique Features

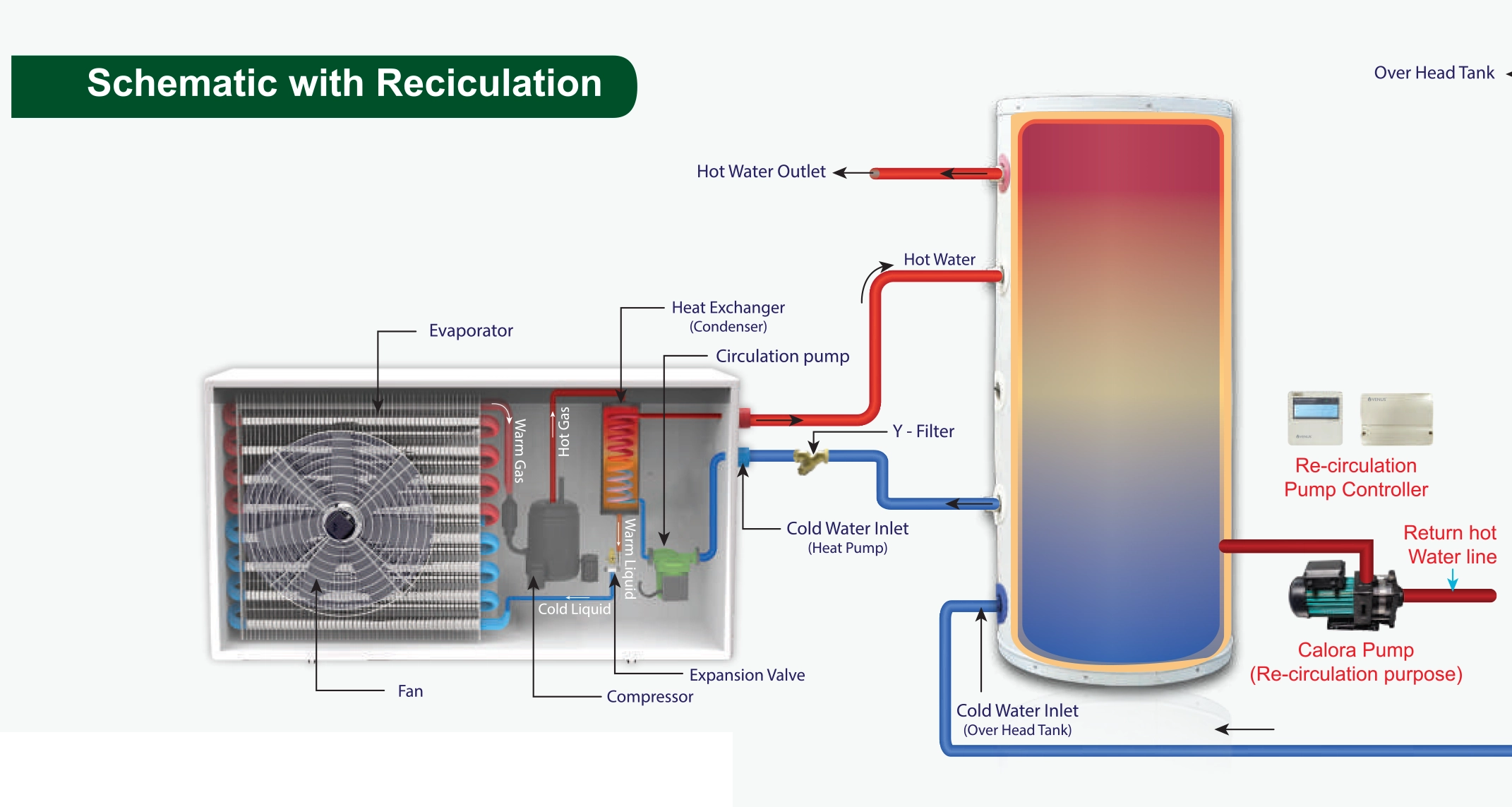

HOW DOES A HEAT PUMP WORK

Major components of a heat pump water heater include a compressor, refrigerant, two heat exchangers (a condenser and an evaporator), and an expansion valve.

Working Principle

The operation begins with air being forced through an evaporator, which contains a liquid refrigerant, with the help of a fan.
This refrigerant evaporates into a gas and extracts heat from the ambient air.
The warm gaseous refrigerant then passes through the compressor, which increases its pressure and converts it into a hot gas.
This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.
The refrigerant cools down in the condenser and becomes a warm liquid.
It then passes through an expansion valve, where it becomes a cool liquid and enters the evaporator again.
The cycle is then repeated continuously.
Hot-water recirculation using a pump and controller ensures instant hot water at fixtures by continuously circulating water through the pipes, reducing wait time and conserving water.

Specifications

Vertical

Description		VSPHPX23	VSPHPX39	VSPHPX60
Rated Heating Capacity	kW	24.0	24.0	24.0
Rated Heating Capacity	BTU/h	5.3	5.2	5.2
Rated Hot Water Output	Inlet Water Temp. 15°C	84	84	84
	Inlet Water Temp. 20°C	96	96	96
	Inlet Water Temp. 25°C	112	112	112
	Inlet Water Temp. 30°C	134	134	134
Rated Heating power input(kW)		0.9	0.9	0.9
Operating Current(A)		4.09
Power Supply(V/PH/Hz)		220~240V/ 1Ph / 50~60Hz
COP(W/W)		4.4
Rated output water temperature(°C)		55
Max outlet water temp(°C)		80 (Heat pump + Electric Heater)
Compressor type		Rotary x1
Water side heat exchanger(Type)		55
Dimensions (A x B x C)(mm)		936 x 385 x 550	936 x 385 x 550
Noise Level(dB(A))		<47dB(A)	<47dB(A)
Fan Discharging(Type)		Horizontal
Ambient temperature(°C)		(-)15~43
Refrigerant(Type)		R410A
Water Connection		3/4"
Cabinet		Powder Coated
Suggested Water tank		100-300	500	500
Suggested Water tank	Inner Tank	Porcelain Enamel Glass Lined Tank
Net Weight(kg)		50	54	54
Gross Weight(kg)		56	61	61
Guarantee (Heat Pump)		2 years*
Guarantee (Compressor)		5 years*

		D	E	D	E	D	E
Tank Dimension	100 Lts	510	1000	-	-	-	-
	200 Lts	560	1385	-	-	-	-
	300 Lts	650	1520	-	-	-	-
	500 Lts	-	-	710	2000	-	-

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C.
* Conditions apply. * Specifications subject to change without prior notice.

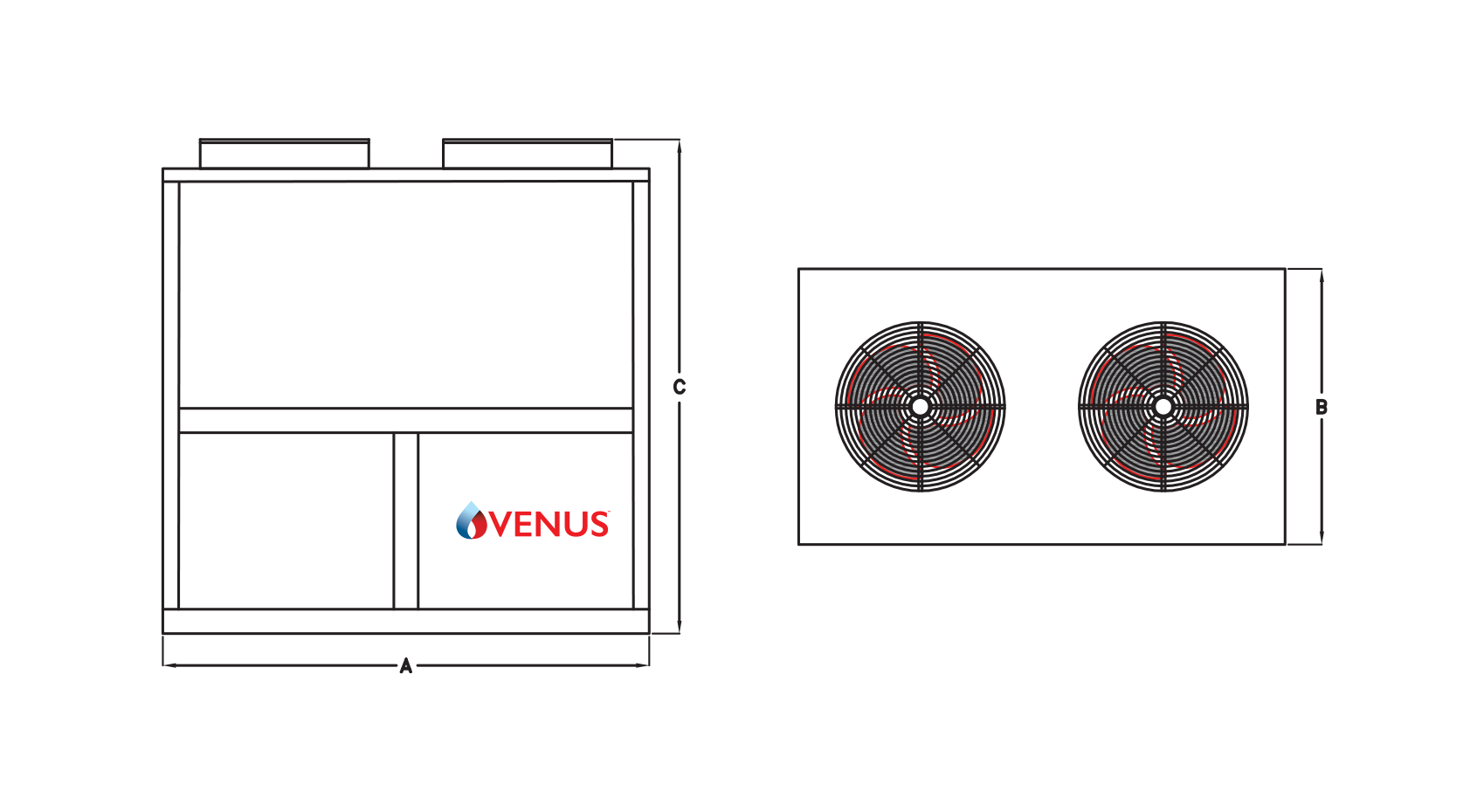

Product Dimensional Drawing

FAQ

Any Question? Can We Help You.

A swimming pool heat pump extracts heat from the surrounding air and transfers it to pool water. It helps maintain a comfortable swimming temperature while using electricity to operate the heat pump.

Pool water circulates through a heat exchanger, where heat collected from the surrounding air is transferred to the water. The warmed water then returns to the pool, and the cycle continues until the desired water temperature is reached and maintained.

Yes. Suitable heat pump capacities can be selected for larger swimming pools. The correct capacity depends on pool volume, desired temperature increase, location, wind exposure, pool cover, usage patterns and the time available to heat the water.

A properly sized system can help maintain the desired pool temperature, provided ambient conditions remain within the heat pump's operating range. Heating performance and operating costs vary depending on weather conditions and heat loss from the pool.

Yes. A swimming pool heat pump can operate at night if ambient conditions remain within its specified operating limits and the system is configured to run. However, cooler night-time temperatures may reduce efficiency, while the pool can lose heat to the surrounding environment.

Yes. Swimming pool heat pumps can be suitable for hotel, resort and recreational pools. The appropriate system configuration depends on pool size, usage frequency, desired water temperature and required heating recovery time.
