Venus Energy Smart X-Series Heat Pump Water Heater | Energy-Efficient Hot Water System | Advanced Heat Pump Technology

Name: Energy Smart X-Series Heat Pump
Brand: Venus Home Appliances

Efficient Hot Water. Everyday Savings.

Experience energy-efficient water heating with the Venus Energy Smart X-Series Heat Pump Water Heater. Designed for modern homes, the X-Series uses heat from the surrounding air to heat water efficiently, reducing reliance on conventional electric water heating.

By transferring heat rather than generating it entirely through electrical resistance, heat pump technology can deliver more heat energy per unit of electricity consumed. This helps reduce energy consumption and offers the potential for long-term savings on electricity bills.

Choose the Venus Energy Smart X-Series for efficient water heating, dependable everyday comfort, and a smarter approach to household energy use.

2 Years on Product5 Years on Inner Tank for the models VDHX3i & VDHX5i1 Year on Inner Tank for the model VDHX8i

*Free Site Visit — To check availability in your area, contact us at: 08144666999

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

Get non-stop hot water anywhere in the house while saving as much as 75-80% on your heating costs.

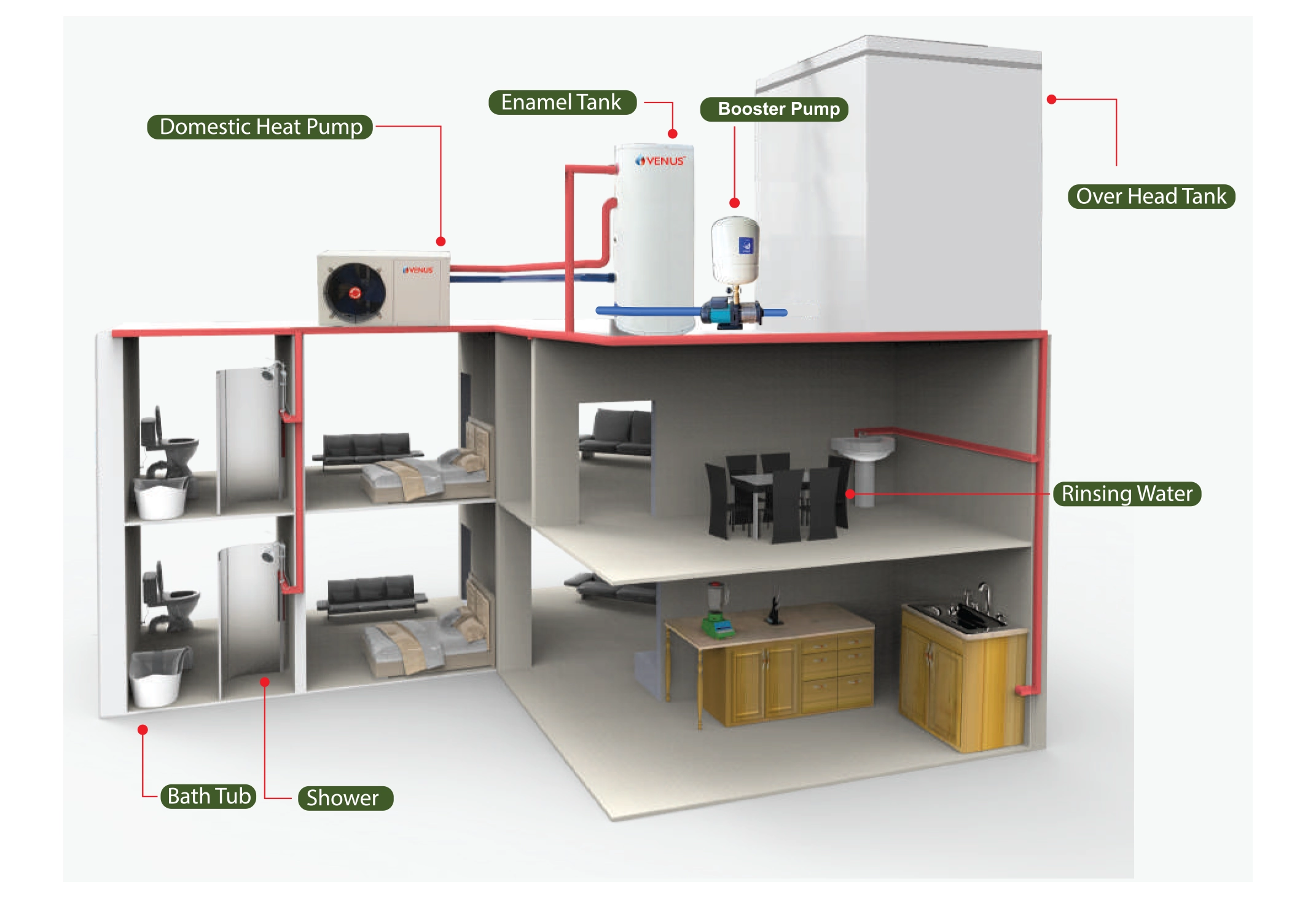

A solitary heat pump installed anywhere in the house can supply hot water to all the bathrooms and kitchens.

Energy-Smart Heating. Everyday Comfort.

The Venus Energy Smart X-Series Heat Pump Water Heater delivers energy-efficient domestic water heating by harnessing heat from the surrounding air. Enjoy reliable hot-water comfort while reducing electricity consumption and potentially lowering everyday running costs.

Applications

Heat pump water heaters are highly energy efficient as most of the energy for heating comes from the external environment, and only a fraction comes from electricity. Thus for 1kW electricity consumed the heat transferred will be 4kW. The amount of electrical energy needed to heat water is greatly reduced compared to a conventional electric water heater in which, for 1kW electricity consumed the heat transferred is only 1kW. Thus in heat pump water heaters the coefficient of performance (ratio of output power to input power) can be as high as 4.

KEY FEATURES

Split system for flexible installation

It consists of external and internal units for installation.

Compressor - heart of the heat pump:

The compressor is the heart of the heat pump operation. Rugged and Reliable rotary compressor.

Intelligent Electronic controller:

Intelligent automatic LCD controller to set temperature and time options.

High Energy Efficiency - COP of 4.2:

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW COP of 4.2

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Low operating cost - more savings:

More savings as the operating costs are low.

Expansion valve:

The expansion valve is an important component in the Heat pump water heater operation.

Circulation Pump:

The circulation pump circulates hot water from the storage tank to the heat pump to enable heat transfer.

Smart Investment. Real Savings.

Switching to a heat pump water heater can reduce running costs dramatically, helping you recover your investment through lower energy bills while enjoying consistent hot water all year. Save Up to 75% on Your Energy Bills.

Try Our Calculator

Heat Pump Savings & ROI Calculator

Enter your daily usage, electricity tariff, and heater size to see how many units you’ll consume, how much you’ll save every month, and your estimated return on investment.

Try Our Calculator

Unique Features

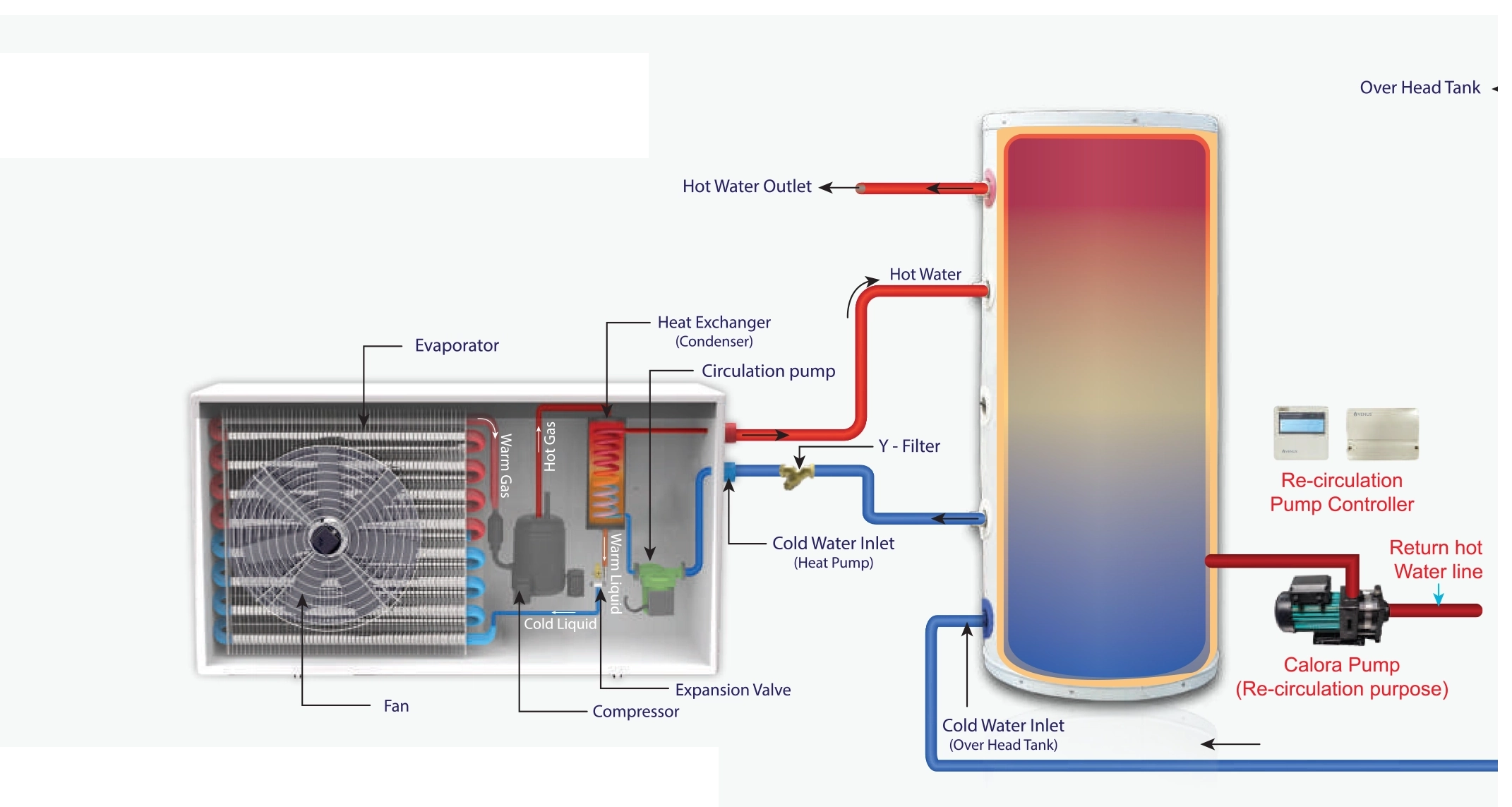

HOW DOES A HEAT PUMP WORK

Major components of a heat pump water heater include a compressor, refrigerant, two heat exchangers (a condenser and an evaporator), and an expansion valve.

Working Principle

The operation begins with air being forced through an evaporator, which contains a liquid refrigerant, with the help of a fan.
This refrigerant evaporates into a gas and extracts heat from the ambient air.
The warm gaseous refrigerant then passes through the compressor, which increases its pressure and converts it into a hot gas.
This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.
The refrigerant cools down in the condenser and becomes a warm liquid.
It then passes through an expansion valve, where it becomes a cool liquid and enters the evaporator again.
The cycle is then repeated continuously.
Hot-water recirculation using a pump and controller ensures instant hot water at fixtures by continuously circulating water through the pipes, reducing wait time and conserving water.

Specifications

Vertical

Description		VDHX3i	VDHX5i	VDHX8i
Rated Heating Capacity	kW	3.5	5.0	7.5
Rated Heating Capacity	BTU/h	11,940	17,060	25,590
Rated Hot Water Output	Inlet Water Temp. 15°C	75	125	185
	Inlet Water Temp. 20°C	85	142	142
	Inlet Water Temp. 25°C	100	145	215
	Inlet Water Temp. 30°C	120	172	260
Rated Heating power input(kW)		0.83	1.19	1.79
Operating Current(A)		3.8	5.4	8.2
Power Supply(V/PH/Hz)		220~240V/ 1Ph / 50~60Hz
COP(W/W)		4.2
Rated output water temperature(°C)		55
Max outlet water temp(°C)		80 (Heat pump + Electric Heater)
Compressor type		Rotary x1
Water side heat exchanger(Type)		Tube-Tube
Dimensions (A x B x C)(mm)		936 x 385 x 550	936 x 385 x 550
Noise Level(dB(A))		≤43	≤48	≤52
Fan Discharging(Type)		Horizontal
Ambient temperature(°C)		-7 to 43
Refrigerant(Type)		R410A
Water Connection		3/4"
Cabinet		Powder Coated
Suggested Water tank		100-300	500	1000
Suggested Water tank	Inner Tank	Porcelain Enamel Glass Lined Tank
Net Weight(kg)		40	45	54
Gross Weight(kg)		45	50	60
Guarantee (Heat Pump)		2 years
Guarantee (Compressor)		5 years

		D	E	D	E	D	E
Tank Dimension	100 Lts	510	1000	-	-	-	-
	200 Lts	560	1385	-	-	-	-
	300 Lts	650	1520	-	-	-	-
	500 Lts	-	-	710	2000	-	-

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C.
* Conditions apply. * Specifications subject to change without prior notice.

Product Dimensional Drawing

FAQ

Any Question? Can We Help You.

The Venus Energy Smart X-Series is a domestic heat pump water heater that uses heat from the surrounding air to heat water efficiently. It is designed for households seeking an energy-efficient alternative to conventional electric water heating.

The X-Series transfers heat from the surrounding air to water instead of relying entirely on direct electrical heating. This technology can deliver more heat energy per unit of electricity consumed, depending on operating conditions.

Yes. A suitable X-Series model can be installed in an independent house or villa, subject to hot-water requirements, available installation space, ventilation, plumbing arrangements, and model specifications.

Yes. When appropriately sized and installed, the X-Series can supply multiple bathrooms and hot-water outlets. Simultaneous usage depends on the model's heating capacity, storage capacity, and household demand.

Potential savings depend on electricity tariffs, hot-water consumption, ambient temperature, selected water temperature, and the existing heating system. Use the Venus Heat Pump Savings Calculator to estimate operating costs and potential savings.

Yes. Unlike solar water heaters, the X-Series extracts heat from the surrounding air and does not require direct sunlight. Its heating performance depends on ambient temperature and the model's specified operating range.
