Venus Commercial Heat Pump Water Heater | High-Capacity Energy-Efficient Hot Water System for Commercial Applications

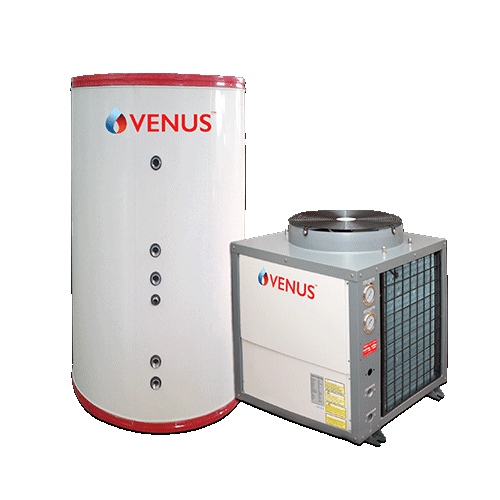

Name: Commercial Heat Pump
Brand: Venus Home Appliances

High-Volume Hot Water. Lower Energy Consumption.

Meet the hot-water demands of your business with Venus Commercial Heat Pump Water Heaters. Designed for applications that require large quantities of hot water, these systems use heat from the surrounding air to heat water efficiently, helping reduce energy consumption and operating costs compared with conventional electric water heating.

From hotels and hospitals to hostels, resorts, and spas, Venus Commercial Heat Pumps offer a practical solution for centralized hot-water systems. With capacity options and storage configurations to suit different requirements, you can plan a system around your establishment’s daily consumption and peak demand.

Efficient Heating. Reliable Supply. Smarter Operating Costs.

1 Year on Product

*Free Site Visit — To check availability in your area, contact us at: 08144666999

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

High-Volume Hot Water. Lower Energy Costs.

Venus Commercial Heat Pump Water Heaters deliver energy-efficient hot water for hotels, hospitals, hostels, resorts and other commercial establishments. Harness heat from the surrounding air to reduce electricity consumption and manage operating costs.

Applications

Commercial Heat Pump Solutions for Centralised Hot Water

Commercial establishments often require substantial quantities of hot water throughout the day. Conventional electric or fuel-based heating can result in significant energy costs, particularly where demand is continuous or concentrated during peak hours.

Venus Commercial Heat Pump Water Heaters use an air-source heat pump system to extract heat from the surrounding air and transfer it to water. Since the system transfers available heat rather than relying entirely on direct electrical heating, it can provide hot water with lower electricity consumption under suitable operating conditions.

Designed for integration with appropriately sized storage tanks and hot-water distribution systems, Venus commercial heat pumps can support centralised hot-water requirements in hospitality, healthcare and institutional settings. System capacity, storage volume and circulation arrangements can be selected according to the building's occupancy, daily demand and peak consumption.

The result is a more energy-conscious approach to commercial hot-water management, with the potential for meaningful long-term operating-cost savings.

Heat pump water heaters are highly energy efficient as most of the energy for heating comes from the external environment, and only a fraction comes from electricity. Thus for 1kW electricity consumed the heat transferred will be 4kW. The amount of electrical energy needed to heat water is greatly reduced compared to a conventional electric water heater in which, for 1kW electricity consumed the heat transferred is only 1kW. Thus in heat pump water heaters the coefficient of performance (ratio of output power to input power) can be as high as 4.

KEY FEATURES

Expansion valve:

The expansion valve is an important component in the Heat pump water heater operation.

Compressor - heart of the heat pump:

Rugged and reliable Scroll compressor with high efficiency heat exchanger - reliable and durable.

Intelligent Electronic
controller:

Intelligent digital controller for precise control and easy operation.

Eco-friendly Refrigerantr:

Eco friendly technology as an Eco friendly refrigerant is used.

High Energy Efficiency - COP of 4.2:

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW COP of 4.2

Evaporator:

Wide temperature range operation, from -10ºC to 43ºC. Can work at night as well as on cloudy or rainy days just like on sunny days.

Low operating cost - more savings:

Heat input as low as 2.86 kW; delivers heat output up to 12 kW (for VCHX10i model).- More Savings.

Condensor

The hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.

Circulation Pump:

The circulation pump circulates hot water from the storage tank to the heat pump to enable heat transfer.

Higher requirements
of hot water:

Can be scaled to meet any requirement of hot water - 500 L & above.

Smart Investment. Real Savings.

Switching to a heat pump water heater can reduce running costs dramatically, helping you recover your investment through lower energy bills while enjoying consistent hot water all year. Save Up to 75% on Your Energy Bills.

Try the Heatpump water heater calculator

Heat Pump Savings & ROI Calculator

Enter your daily usage, electricity tariff, and heater size to see how many units you’ll consume, how much you’ll save every month, and your estimated return on investment.

Try the Heatpump water heater calculator

Unique Features

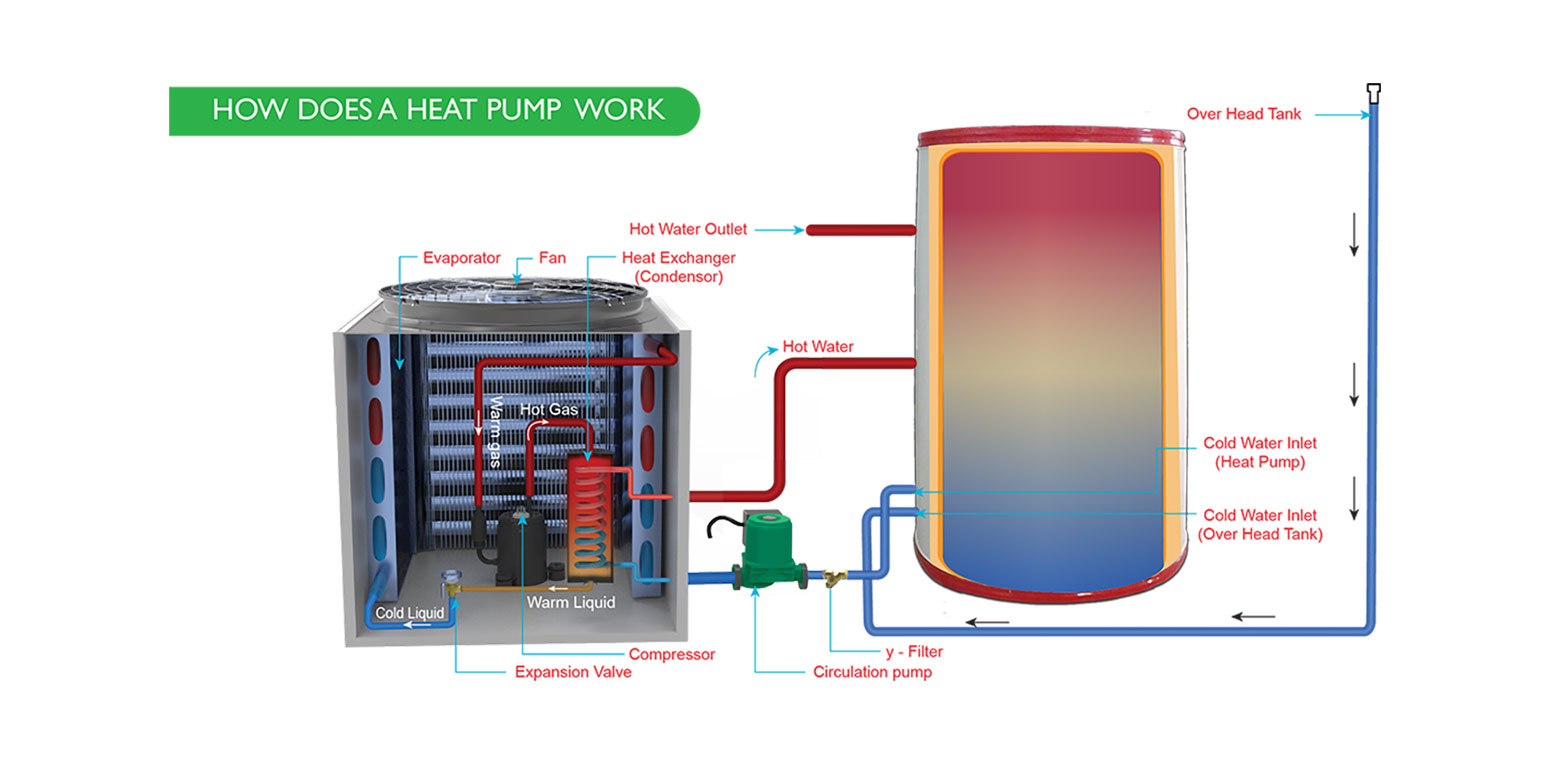

HOW DOES A HEAT PUMP WORK

Major components of a heat pump water heater include a compressor, refrigerant, two heat exchangers (a condenser and an evaporator), and an expansion valve.

Working Principle

The operation begins with air being forced through an evaporator, which contains a liquid refrigerant, with the help of a fan.
This refrigerant evaporates into a gas and extracts heat from the ambient air.
The warm gaseous refrigerant then passes through the compressor, which increases its pressure and converts it into a hot gas.
This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.
The refrigerant cools down in the condenser and becomes a warm liquid.
It then passes through an expansion valve, where it becomes a cool liquid and enters the evaporator again.
The cycle is then repeated continuously.

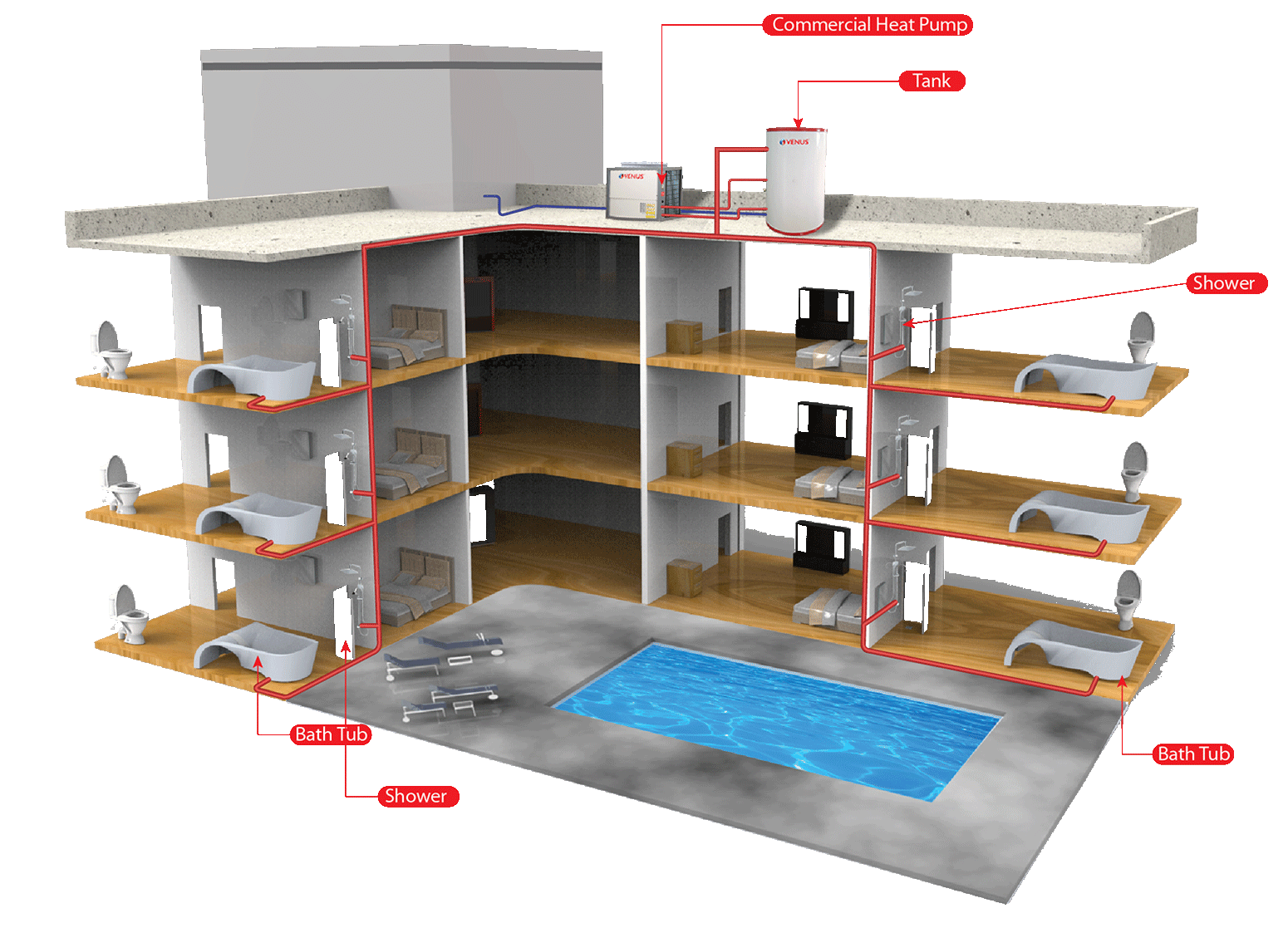

Hot-water recirculation using a pump and controller ensures instant hot water at fixtures by continuously circulating water through the pipes, reducing wait time and conserving water.

Specifications

Vertical

Description		VDHX3i	VDHX5i	VDHX8i
Rated Heating Capacity	kW	3.5	5.0	7.5
Rated Heating Capacity	BTU/h	11,940	17,060	25,590
Rated Hot Water Output	Inlet Water Temp. 15°C	75	125	185
	Inlet Water Temp. 20°C	85	142	142
	Inlet Water Temp. 25°C	100	145	215
	Inlet Water Temp. 30°C	120	172	260
Rated Heating power input(kW)		0.83	1.19	1.79
Operating Current(A)		3.8	5.4	8.2
Power Supply(V/PH/Hz)		220~240V/ 1Ph / 50~60Hz
COP(W/W)		4.2
Rated output water temperature(°C)		55
Max outlet water temp(°C)		80 (Heat pump + Electric Heater)
Compressor type		Rotary x1
Water side heat exchanger(Type)		Tube-Tube
Dimensions (A x B x C)(mm)		936 x 385 x 550	936 x 385 x 550
Noise Level(dB(A))		≤43	≤48	≤52
Fan Discharging(Type)		Horizontal
Ambient temperature(°C)		-7 to 43
Refrigerant(Type)		R410A
Water Connection		3/4"
Cabinet		Powder Coated
Suggested Water tank		100-300	500	1000
Suggested Water tank	Inner Tank	Porcelain Enamel Glass Lined Tank
Net Weight(kg)		40	45	54
Gross Weight(kg)		45	50	60
Guarantee (Heat Pump)		2 years
Guarantee (Compressor)		5 years

		D	E	D	E	D	E
Tank Dimension	100 Lts	510	1000	-	-	-	-
	200 Lts	560	1385	-	-	-	-
	300 Lts	650	1520	-	-	-	-
	500 Lts	-	-	710	2000	-	-

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C.
* Conditions apply. * Specifications subject to change without prior notice.

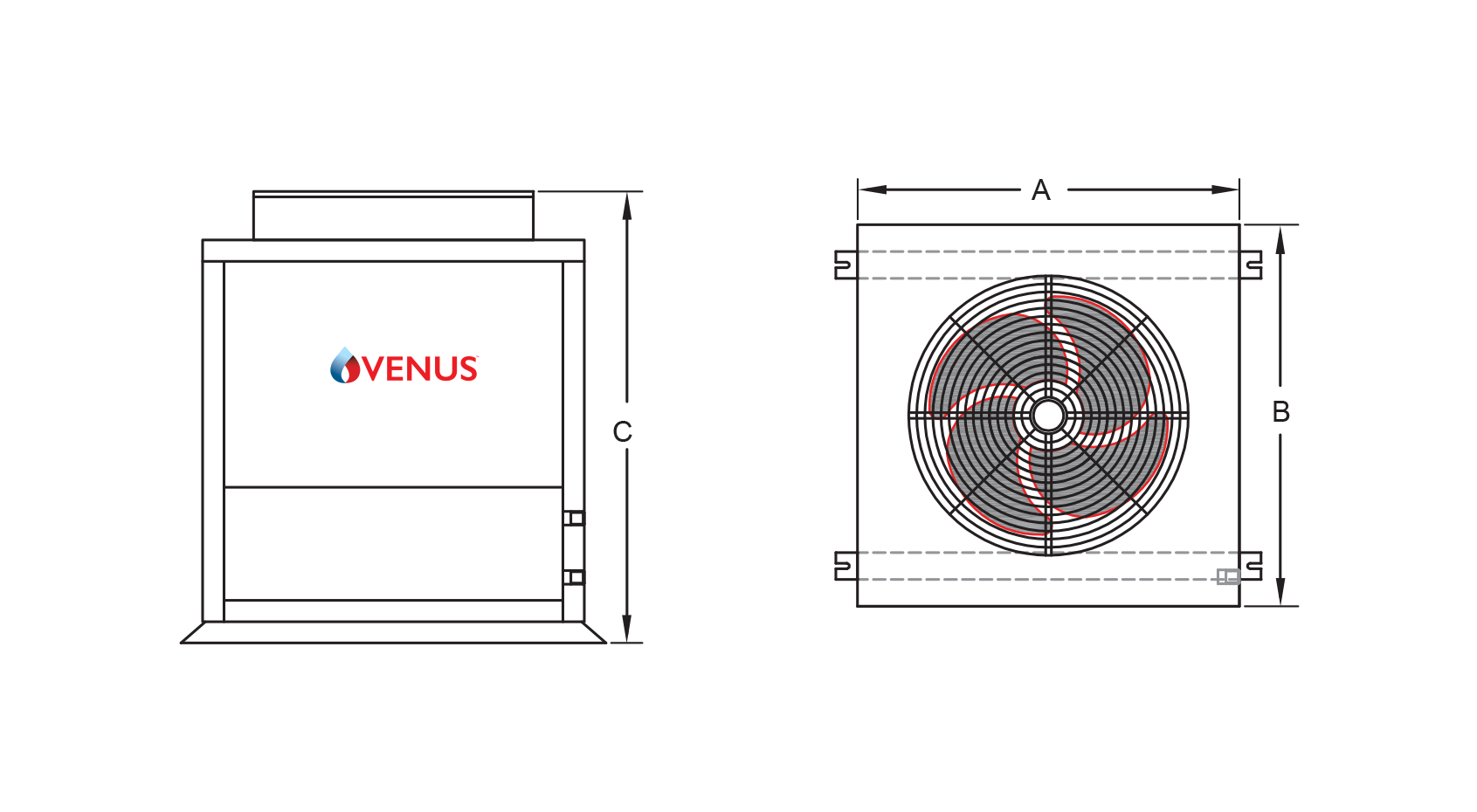

Product Dimensional Drawing

FAQ

Any Question? Can We Help You.

A commercial heat pump water heater uses heat from the surrounding air to heat water for establishments with substantial hot-water requirements. It is commonly used in hotels, hospitals, hostels, resorts, spas and institutional buildings.

A commercial heat pump transfers heat from ambient air to water through a refrigeration cycle. Since it transfers heat rather than generating all the heat directly from electricity, it can deliver more thermal energy per unit of electricity consumed than a conventional electric resistance water heater.

The required capacity depends on daily hot-water consumption, peak-hour demand, inlet-water temperature, desired outlet temperature, available storage and recovery time. A project assessment is recommended to determine the appropriate system capacity.

Yes. A properly designed centralised hot-water system can supply multiple bathrooms and outlets. The heat pump capacity, storage tanks, piping, circulation system and peak demand must be considered together to ensure reliable hot-water delivery.

Yes. Commercial heat pump systems can be designed to meet hot-water demand throughout the day, provided they are correctly sized and equipped with adequate storage and recovery capacity. Actual performance depends on operating conditions and the installation design.

Energy savings depend on the existing heating system, electricity tariffs, hot-water consumption, ambient conditions and system efficiency. Comparing the expected energy consumption of a commercial heat pump with the existing heating system can help estimate potential operating-cost savings.

Yes. Air-source heat pumps use heat from the surrounding air and do not depend on direct sunlight. Their performance varies with ambient air temperature and humidity and must remain within the operating limits specified for the selected model.
